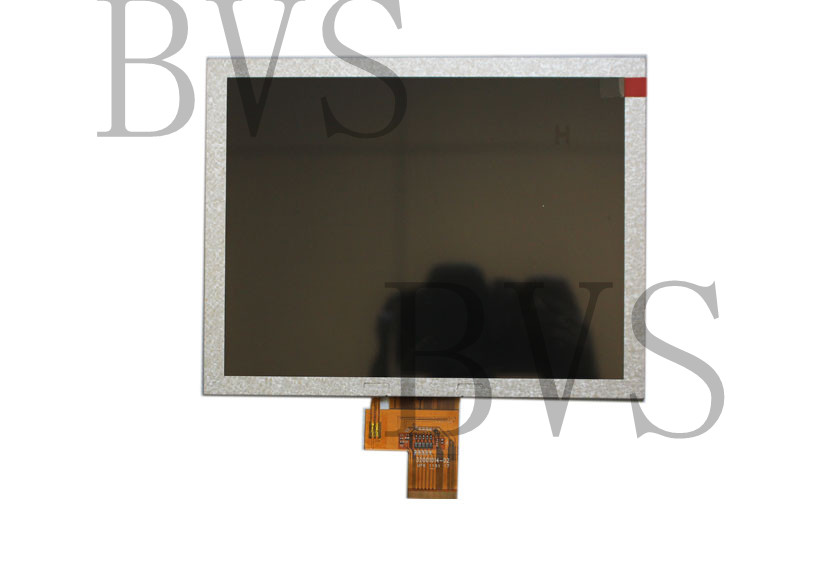

EJ080NA-04C
Brand: CHIMEI INNOLUX
Panel Model: EJ080NA-04C
Interface: TTL
Panel size: 8
Resolution: 1024 X 3(RGB) X 768
Brightness: 300
Contrast Ratio: 500:1
Display Color: 16.7M(8-bit)
Back light: WLED
Brand: group a (INNOLUX)
Panel type: EJ080NA - 04 - c
Panel type: a - Si TFT - LCD, the LCD panel
Panel size: 8.0 "(inches)
Resolution: 1024 x 768 (RGB)
Display mode: TN, often white display, transmission type
Surface treatment: spray surface
Panel brightness: 300 CD/m2
For than degrees: 500:1 (Typ.)
Display color: 262 k / 16.2 M (6 - bit / - bit + Dithering)
Response time: 10/15 (Typ.) (Tr/Td)
Visual Angle: 70/70/50/70 (Typ.) (CR 10 or higher) (left/right/up/down)
Lamp type: 3 s9p WLED
The signal type: the Parallel RGB (1 ch, 6/8 - bit)
Panel voltage: 16.0/3.3/10.4 / - 7.0 V (Typ.) (VCC/AVDD/VGH/VGL)

Distance: 0.0642 (W) x 0.1790 (H)

Note: the above profile information is for reference only, all data will be subject to PDF specification.
